Zhafir Zeres Series
- Available from 400 to 13,800 kN
- Integrated servo-hydraulics for side axis like cores or ejector
- High precision
- Up to 70% energy saving
- High mold protection
- Quiet operation
- 15-inch SIGMATEK controller
Zhafir Zeres Series
Technology to the point

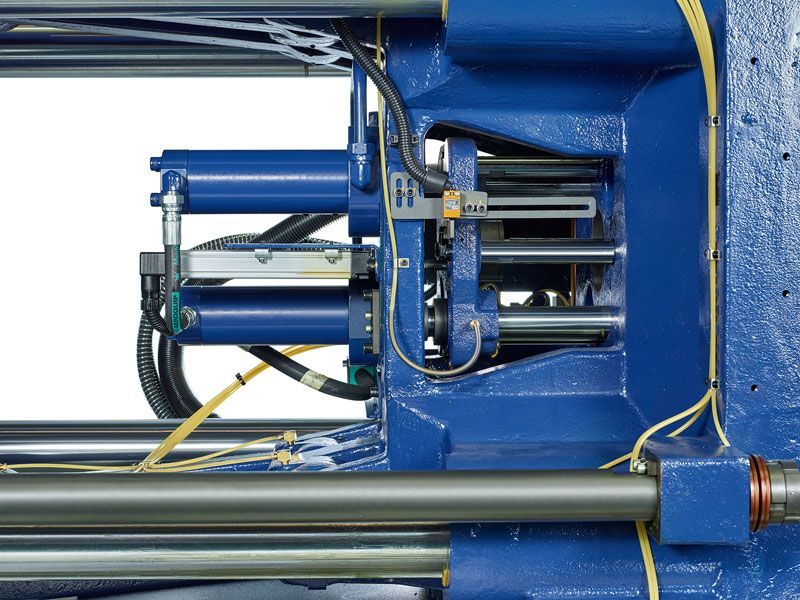

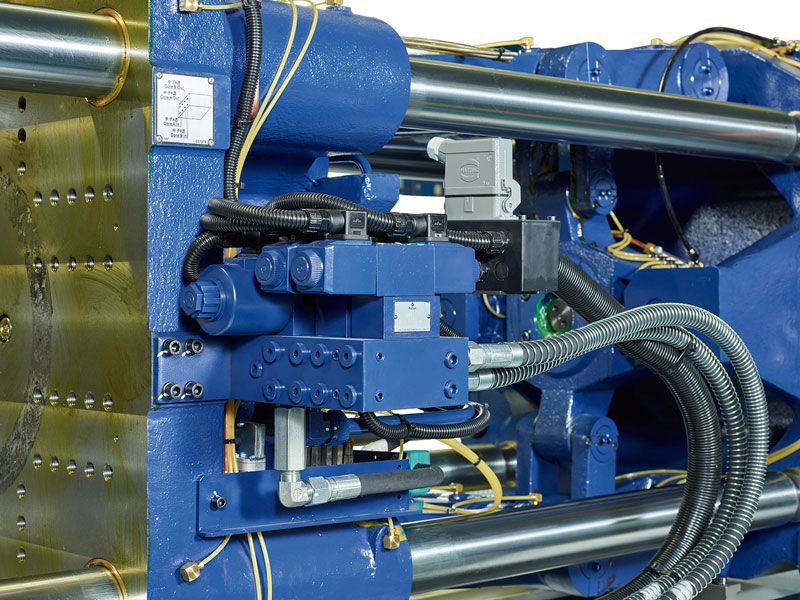

Discover new ways but on a familiar territory by using the advantages of electric injection-molding technology in areas traditionally associated with hydraulic machines. The Zeres Series, identical in construction to the all-electric Venus II Series, offers an integrated hydraulic system. Main movements like mold and injection are all-electric. Side axis like nozzle movement, cores and ejector are hydraulic.
In this way, the Zeres gives the processor not only the wide electric range of applications but at the same time also more production efficiency because of energy savings in the double-digit percentage range. Currently, the Zeres Series is available in clamping forces from 400 to 13,800 kN.
400 – 13,800 kN
Max. TIE BAR
1,550 x 1,450 mm
500 mm/s (210hs)
Discover Zeres Series
Servo Electrical Drives
Matching of the servo motor and servo drive enables further improvement of the acceleration rate and utilization of renewable resources, realizing energy saving.
High Acceleration & Speed

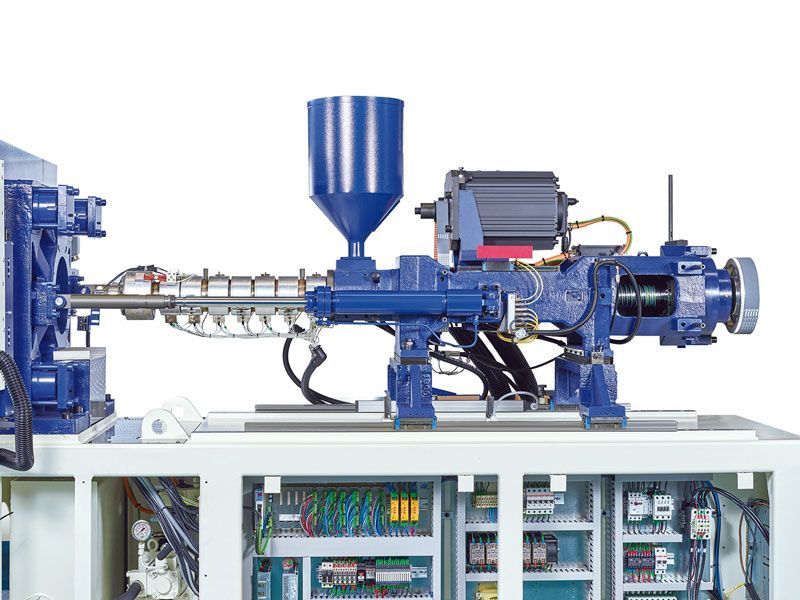

The new design of the injection unit is more compact: A reduction of single components bring more stability and dynamics in the injection movement. The high speed injection unit 210h reaches maximum injection speed to 500 mm/s. The hydraulic carriage provides high pressure for mold contact with more speed. The nozzle touch pressure and moving speed can be adjusted on the control unit with a two-steps-setting.
Servo-electric clamping unit
The redesigned 5-point-toggle-system increases the platen intensity, reduces platen inertia and joint stress. The optimized mechanical structure provides more efficiency and a quite machine running. The design stands for opimized speed curve and reduced dry clycle times.
Sliders for moving platen support heavy mold weight and reduce the coefficient of friction. The Platen moves smoother and can be replaced and maintained very easy.
Dynamic & Efficiency
Increased flow & pressure
Fast Setup Times
Latest Software & Control
LATEST CONTROL TECHNOLOGY FROM SIGMATEK
• 15-inch color touch LCD screen • Three general-purpose USB interfaces • Mold profile data memory (up to 200 sets) • New performance for production monitoring • User-friendly user interface • Comprehensive software functions • LED operation indicator • Clear and simple button to re-layout • Shortcut configuration for clear identification • Multi-language available • RFID card with password control for an easier factory management
